Okay, so it's time we look into OPSEC, because most people don't have the first clue about it.

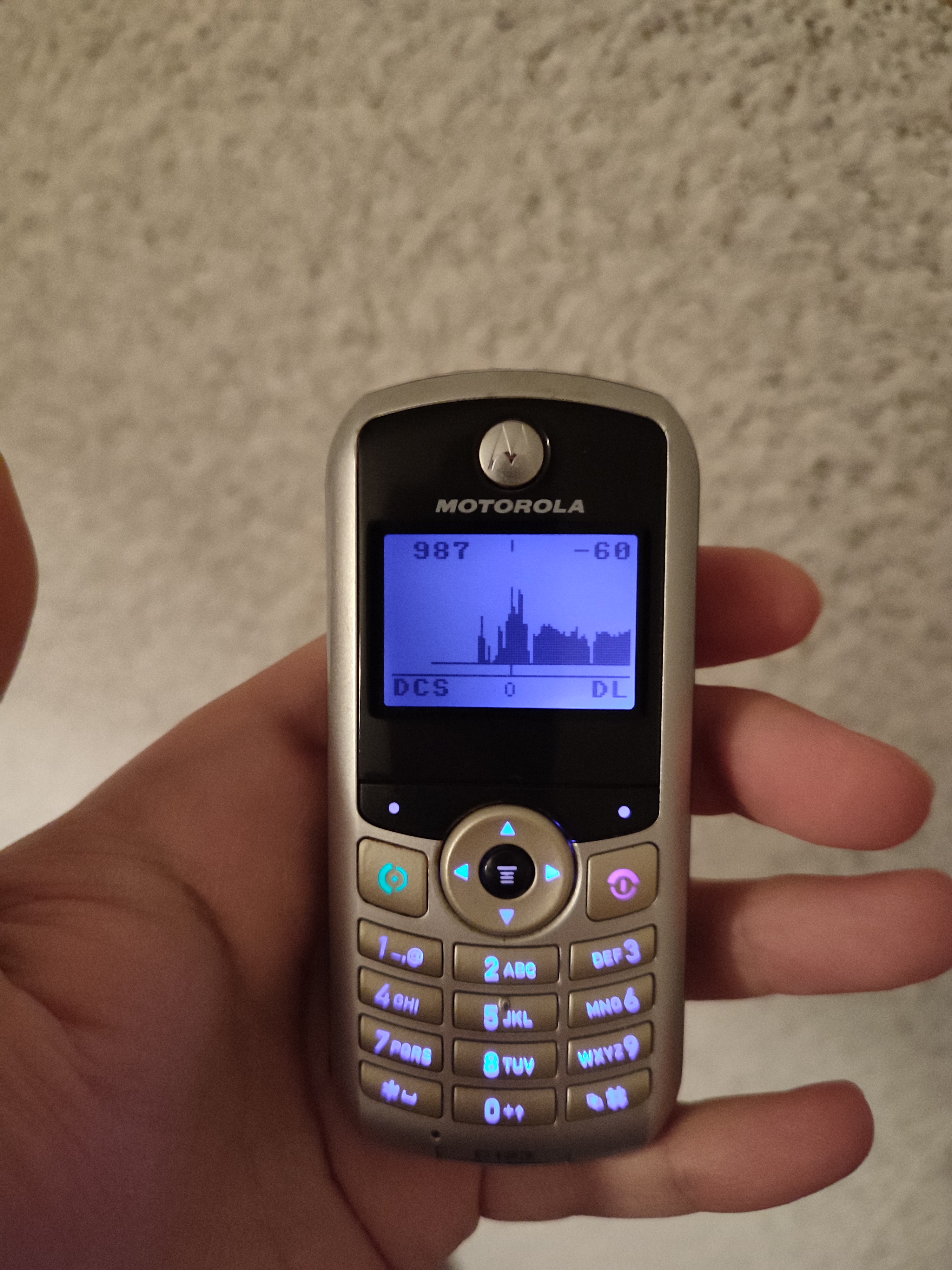

>cell phonesGet a Motorola C123 and flash OsmocomBB on it. This is the only widely working open GSM stack for real phones. Then take a LMS7002M / AD9361, wire it to a board, with ECP5 FPGAs, LiteX SD chips, and so on for a Hybrid-SDR GSM Phone (2G wireless) which is PhD-level work because of timing mismatch and no existing glue layer. You’d basically be writing a GSM PHY from scratch. Let me ground exactly why it jumps to “PhD-level,” because it’s not just complexity—it’s specific hard problems:
- GSM Layer 1 (PHY) Is the Real Monster
OsmocomBB handles Layer 2/3 well—but it assumes tight coupling to Calypso DSP and deterministic timing from the original RF chipset. When you replace that with SDR you must implement GMSK modulation/demodulation, burst timing (577 µs slots, exact), frequency correction loops, channel estimation & equalization and TDMA synchronization with tower. That alone is a full research-grade problem.
- Timing Is Not Forgiving
GSM is not like Wi-Fi where you can buffer and recover. You’re dealing with microsecond-level TDMA slots, strict uplink timing advance and continuous synchronization with base station. Problem? Linux + FPGA + SDR pipelines introduce latency/jitter. So you need hard real-time logic in FPGA, deterministic buffering, possibly a custom RTOS layer.
- Calypso ↔ SDR Interface Doesn’t Exist
This is the hidden killer. Calypso expects a specific analog baseband interface and known RF timing behavior. But SDR gives you raw I/Q streams. So you need to build a translation layer. Convert GSM bursts ↔ I/Q samples, maintain timing alignment and emulate expected RF responses. There’s no off-the-shelf glue for this.
- FPGA Work Isn’t Optional
The Lattice ECP5 would need to handle real-time burst processing, filtering and decimation, possibly full GSM PHY blocks. This is Verilog/VHDL or LiteX-level work, DSP pipeline design and fixed-point math tuning.
What You’re Actually Building (Conceptually) if you succeed, you’ve created something like a software-defined GSM handset with open baseband (OsmocomBB), custom PHY (FPGA + SDR) and a replaceable RF frontend. That’s extremely rare—most open GSM work focuses on towers, not handsets.
A More Realistic Way to Reach It? If your goal is to eventually hit this path (instead of just hooking the phone up to a UART and computer to run through GNUNet), the practical route looks like:
Step 1 — Master Known-Good Stack
TI Calypso phone + OsmocomBB
Understand GSM bursts, timing and layer interactions.
Step 2 — SDR GSM (Receive Only)
Use SDR (AD9361/LMS7002M) to passively decode GSM. Study burst structure, synchronization and channel behavior (no transmit = no legal issues + easier).
Step 3 — Build GSM PHY Blocks
In FPGA: GMSK mod/demod, timing recovery and burst detection. This is where most of the “PhD-level” work lives.
Step 4 — Attempt Integration
Only then do you bridge OsmocomBB ↔ FPGA PHY and replace RF frontend.
Straight Answer? It's not wrong: yes — the idea is viable in principle. And yes — it absolutely requires deep SDR + FPGA expertise. But the key insight is that the difficulty isn’t “building a phone” — it’s recreating GSM Layer 1 from scratch under real-time constraints.
One Important Strategic Point. If your end goal is sovereign communications, open hardware and resistant to control then ironically GSM (even open) is a dead-end path long-term. Because you still depend on carrier infrastructure, you inherit legacy protocol weaknesses and you’re constrained by spectrum regulation.
Unless you can turn that stack into a private 2G (GSM) node, but it only really becomes “sovereign” if you also control the network side (not just the handset PHY). At that point you’re effectively building a micro‑carrier. Let’s map what that actually means.
What “private 2G node” implies: with FPGA Layer 1 (ECP5), SDR front-end like AD9361 / LMS7002M and an open stack like OsmocomBB, you can build either:
Option A — Advanced handset (client)
Connects to someone else’s GSM network
→ still dependent, still constrained
Option B — Private GSM base station (what I'm proposing)
Your device acts as a BTS (tower). Phones connect to you, not a carrier. This is the meaningful shift.
What You Need for a Private GSM Network
A real GSM network has layers:
- Radio Layer (your FPGA + SDR), GSM PHY (GMSK, TDMA timing), broadcast channels (BCCH, FCCH, SCH) and uplink/downlink scheduling. This is the hardest part you’re targeting.
- Base Station + Core Network
You’d need software like OpenBTS or Osmocom equivalents and Asterisk for voice routing. These provide call switching, SMS handling, and subscriber database (HLR/VLR equivalent).
- SIM / Identity Control
You control IMSI ranges, authentication keys (Ki) and network policies. This is where sovereignty actually begins
Does This Solve the Problems?
Yes. What you gain: no dependency on carriers and full control over who connects, encryption policies (you can improve them), routing (local, mesh, GNUNet, etc.) and works offline (completely isolated network). This is real infrastructure ownership.
What still doesn’t go away
- RF Detectability
Your base station is even easier to detect than a phone because constant broadcast (BCCH beacon) and fixed frequency that can be located via direction finding.
- Spectrum Regulation
GSM bands are licensed almost everywhere. Running a BTS without authorization is illegal in most countries. Much more serious than a rogue handset.
- GSM Protocol Limitations
Even in a private network GSM crypto is weak unless you replace it, metadata is still exposed internally and no built-in forward secrecy. You’d want to layer encryption above GSM anyway.
Where This Gets Interesting: this is the key insight:
> Once you control FPGA Layer 1, you’re no longer limited to GSM—you’re just using it as a starting pointSo your “private 2G node” can evolve into a Hybrid System.
Mode 1: GSM-compatible (for legacy phones)
Mode 2: Custom protocol (your own PHY/MAC)
Using the same hardware:
ECP5 = PHY engine
SDR = RF frontend
GNUNet Over Private GSM? Now this part is actually viable. Run data over CSD or GPRS-like channels and tunnel GNUnet traffic. But better yet, skip GSM data entirely and use GSM only for identity + signaling and run data over a parallel custom channel.
Strategic Reality
What I'm proposing is basically:
> A community-owned cellular network with open hardware PHYThat’s powerful—but GSM is just a bootstrap layer. The real long-term play is custom PHY, encrypted mesh and decentralized routing.
Final Answer
> Yes—turning your FPGA SDR modem into a private 2G node does break the “carrier dependency” problem.But it does not solve RF traceability, it does not bypass spectrum laws, and it does not fix GSM’s inherent security flaws. It does, however, give you something much more important: control over the network itself.
