>>2702622A VHF repeater is essentially a radio station that listens on one frequency and immediately rebroadcasts what it hears on another frequency, allowing two-way radios to communicate over much longer distances than they could directly. Here's how it works in practice; imagine you have a walkie-talkie that can only reach a few miles due to terrain or buildings. You transmit on the repeater's input frequency say 146.520 MHz, the repeater's receiver picks up your weak signal, and its powerful transmitter immediately blasts that same audio out on its output frequenc, say 147.120 MHz at much higher power. Other radios in the area are listening on that output frequency, so they hear your message clearly even though you were too far away to reach them directly. The repeater uses a device called a duplexer, which is essentially a sophisticated filter that allows the transmitter and receiver to share the same antenna without the transmitter overwhelming the receiver, even though the frequencies are very close together. This requires precise engineering because transmitting and receiving simultaneously on nearby frequencies is technically challenging.
A voting system, sometimes called a voting comparator, takes this concept further for large coverage areas. Instead of one repeater with one receiver, imagine five different receiver sites scattered across a city or region, all connected by internet or radio links to a central location. When you transmit, maybe two or three of these receiver sites can hear you, each with different signal quality depending on your location, terrain, and interference. The voting comparator instantly analyzes all incoming signals and selects the one with the best audio quality, typically the one with the strongest signal and least noise then sends that clean audio to the repeater transmitter. As you drive around, different receivers become the best choice, and the system seamlessly switches between them without you noticing, maintaining clear communication throughout a wide area that no single receiver could cover alone.
Trunked radio systems represent a completely different approach to managing radio communications, designed to maximize efficiency when you have many users and limited frequencies. In a conventional system, each group has its own dedicated frequency, police on one channel, fire on another, public works on a third, even if they are not actively talking. This wastes spectrum because channels sit idle while others are busy. A trunked system instead pools all available frequencies into a shared resource managed by a computer controller. When you want to talk, your radio sends a request to the controller, which instantly assigns you whatever frequency is currently free from the pool. You and your group communicate on that frequency for the duration of your conversation, then the frequency returns to the pool for others to use. Your radio handles all this automatically; you simply select your talk group say "Tactical Team Alpha" and the system ensures only radios in that group hear your transmission, even though you might be using a different physical frequency each time you key up. This allows hundreds or thousands of users to share a relatively small number of frequencies efficiently, with features like priority override, encryption, and individual calling that conventional systems cannot easily provide.

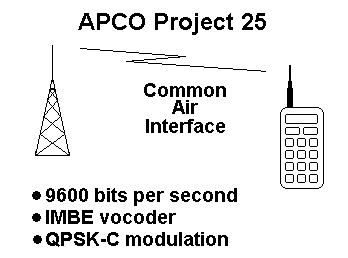

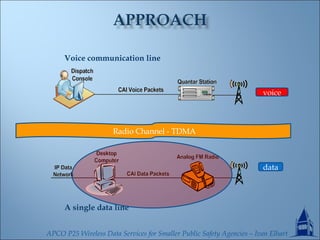

Federal Police and emergency services in the United States typically use encryption standards governed by the Telecommunications Industry Association (TIA) and Project 25 (P25), a suite of standards for digital radio communications. P25 Phase 2 supports Advanced Encryption Standard (AES) with 256-bit keys, which is considered computationally secure against brute force attacks with current technology. Many agencies also use Data Encryption Standard (DES) or Triple DES for legacy systems, though these are being phased out due to vulnerabilities. The implementation is usually through proprietary algorithms controlled by the radio manufacturer, Motorola's ADP (Advanced Data Protection) and ARC4, Harris/BK Technologies' encryption modules, or similar vendor-specific solutions. A significant policy debate exists around encryption in public safety while agencies cite officer safety and operational security as reasons to encrypt routine traffic, journalists and transparency advocates argue that full encryption undermines public oversight and community accountability.
Some jurisdictions have compromised by encrypting tactical channels while leaving dispatch channels in the clear, or by providing delayed access to encrypted recordings through public records requests.
Motorola's ADP (Advanced Data Protection) and similar vendor solutions use ARC4 (Alleged RC4), a stream cipher with documented vulnerabilities including keystream biases and weak key scheduling. While AES-256 is available in P25 Phase 2, many agencies continue operating legacy DES or Triple DES systems due to budget constraints, ciphers that can be broken in hours with modest computing resources. The closed nature of these algorithms prevents independent cryptanalysis; security through obscurity is the default model, which cryptographic consensus considers poor practice.
The most severe vulnerabilities in this form of encryption are operational rather than mathematical. Keys are often distributed manually through physical keyloaders transported by personnel, creating interception opportunities during transit. Many agencies use static keys for months or years without rotation, meaning a single compromised key exposes all communications during that period. Over-the-air rekeying (OTAR), while convenient, transmits key material via radio waves that can be intercepted and decrypted if the system itself is compromised. Unlike military Key Management Infrastructure with tamper-evident hardware and multi-person integrity controls, policings key management often relies on single individuals with minimal oversight.
These radios are commercial off-the-shelf (COTS) equipment available for purchase by anyone. This creates supply chain risks; intercepted or dropped radios can be modified with firmware implants, and used equipment markets provide adversaries with identical hardware for reverse engineering. Radios lack the physical tamper resistance of military COMSEC devices, no epoxy potting, no mesh shielding, no automatic zeroization upon opening. Side-channel attacks (power analysis, timing attacks, electromagnetic leakage) are practical against these devices with inexpensive equipment.
Even when voice content is encrypted, trunked systems leak substantial metadata through control channels. Every radio registration, affiliation with talk groups, and channel grant request transmits in the clear or with weak protection, revealing unit locations, organizational structure, and operational patterns. Military systems use encrypted control channels and spread-spectrum waveforms that obscure this metadata; public safety systems typically do not.
The push for interoperability between agencies during emergencies often introduces cryptographic downgrade attacks. Radios may be configured to fall back to unencrypted analog or weak digital modes when communicating with legacy equipment, and adversaries can force this fallback through jamming or spoofing. Encryption keys shared across multiple agencies for interoperability expand the attack surface and compromise one agency, thus compromise the network.
While AES-256 remains computationally secure, public safety implementations often use shorter key lengths or reduced rounds for performance. More critically, default keys and factory reset keys are sometimes hardcoded or widely known within user communities. Radio programming software, while nominally restricted, circulates online and allows extraction of key material from cloned configurations. A motivated adversary with physical access to a single radio can extract keys and decrypt network traffic indefinitely.
These weaknesses reflect the fundamental threat model mismatch; public safety encryption is designed to deter casual eavesdropping and criminal interception, not to resist determined nation-state or sophisticated non-state adversaries with resources for hardware reverse engineering, signals intelligence collection, and cryptanalytic attacks.
I'm sure AES-256 itself has no known practical cryptographic weaknesses when implemented correctly. It remains computationally secure against brute force attacks with current and foreseeable technology. Poorly implemented AES in software or hardware can leak key material through these channels. Key management failures are the dominant vulnerability. AES-256 with a weak password, static key, or poorly generated randomness is easily broken regardless of cipher strength. Keys stored in plaintext, transmitted insecurely, or derived from predictable sources compromise the system. If AES has a vulnerability not rooted in the human error I listed, then I'm all ears.
