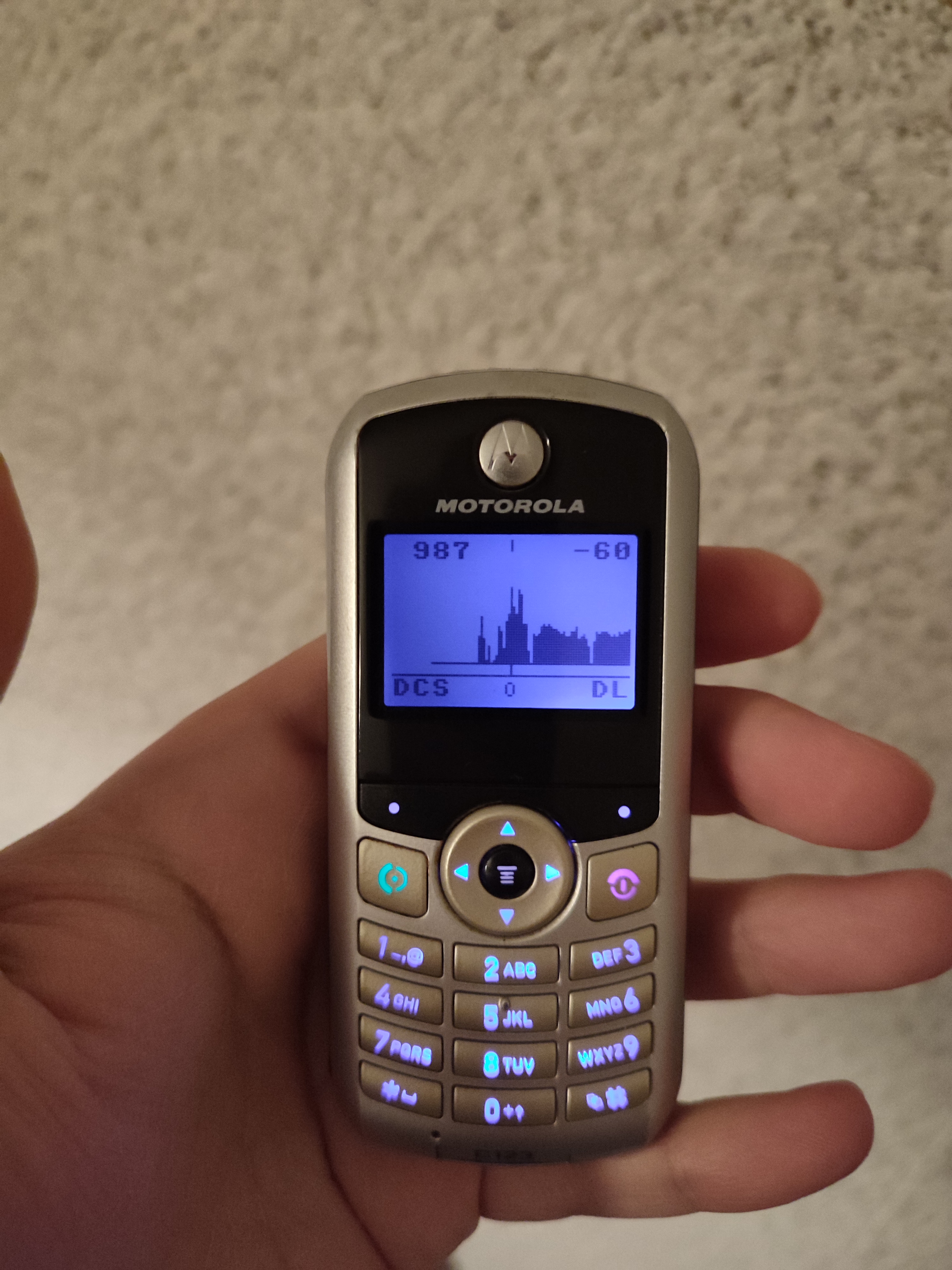

Get a Motorola C123 and flash OsmocomBB on it. This is the only widely working open GSM stack for real phones. Then take a LMS7002M / AD9361, wire it to a board, with ECP5 FPGAs, LiteX SD chips, and so on for a Hybrid-SDR GSM Phone (2G wireless) which is PhD-level work because of timing mismatch and no existing glue layer. You’d basically be writing a GSM PHY from scratch. Let me ground exactly why it jumps to “PhD-level,” because it’s not just complexity—it’s specific hard problems:

1. GSM Layer 1 (PHY) Is the Real Monster



OsmocomBB handles Layer 2/3 well—but it assumes tight coupling to Calypso DSP and deterministic timing from the original RF chipset. When you replace that with SDR you must implement GMSK modulation/demodulation, burst timing (577 µs slots, exact), frequency correction loops, channel estimation & equalization and TDMA synchronization with tower. That alone is a full research-grade problem.

1. Timing Is Not Forgiving



GSM is not like Wi-Fi where you can buffer and recover. You’re dealing with microsecond-level TDMA slots, strict uplink timing advance and continuous synchronization with base station. Problem? Linux + FPGA + SDR pipelines introduce latency/jitter. So you need hard real-time logic in FPGA, deterministic buffering, possibly a custom RTOS layer.

1. Calypso ↔ SDR Interface Doesn’t Exist



This is the hidden killer. Calypso expects a specific analog baseband interface and known RF timing behavior. But SDR gives you raw I/Q streams. So you need to build a translation layer. Convert GSM bursts ↔ I/Q samples, maintain timing alignment and emulate expected RF responses. There’s no off-the-shelf glue for this.

1. FPGA Work Isn’t Optional



The Lattice ECP5 would need to handle real-time burst processing, filtering and decimation, possibly full GSM PHY blocks. This is Verilog/VHDL or LiteX-level work, DSP pipeline design and fixed-point math tuning.

What You’re Actually Building (Conceptually) if you succeed, you’ve created something like a software-defined GSM handset with open baseband (OsmocomBB), custom PHY (FPGA + SDR) and a replaceable RF frontend. That’s extremely rare—most open GSM work focuses on towers, not handsets.

A More Realistic Way to Reach It? If your goal is to eventually hit this path (instead of justing hooking the phone up to a UART and computer to run thriugh GNUNet), the practical route looks like:

Step 1 — Master Known-Good Stack

TI Calypso phone + OsmocomBB

Understand GSM bursts, timing and layer interactions.

Step 2 — SDR GSM (Receive Only)

Use SDR (AD9361/LMS7002M) to passively decode GSM. Study burst structure, synchronization and channel behavior (no transmit = no legal issues + easier).

Step 3 — Build GSM PHY Blocks

In FPGA: GMSK mod/demod, timing recovery and burst detection. This is where most of the “PhD-level” work lives.

Step 4 — Attempt Integration

Only then do you bridge OsmocomBB ↔ FPGA PHY and replace RF frontend.

Straight Answer? It's not wrong: yes — the idea is viable in principle. And yes — it absolutely requires deep SDR + FPGA expertise. But the key insight is that the difficulty isn’t “building a phone” — it’s recreating GSM Layer 1 from scratch under real-time constraints.

One Important Strategic Point. If your end goal is sovereign communications, open hardware and resistant to control then ironically GSM (even open) is a dead-end path long-term. Because you still depend on carrier infrastructure, you inherit legacy protocol weaknesses and you’re constrained by spectrum regulation.
